This Solar Charge Controller is multifunctional, comparing with our IR-A series, this model can meet your requirements to charge different kinds of batteries.
You also can adjust the load working hour based on Dust to Dawn mode.

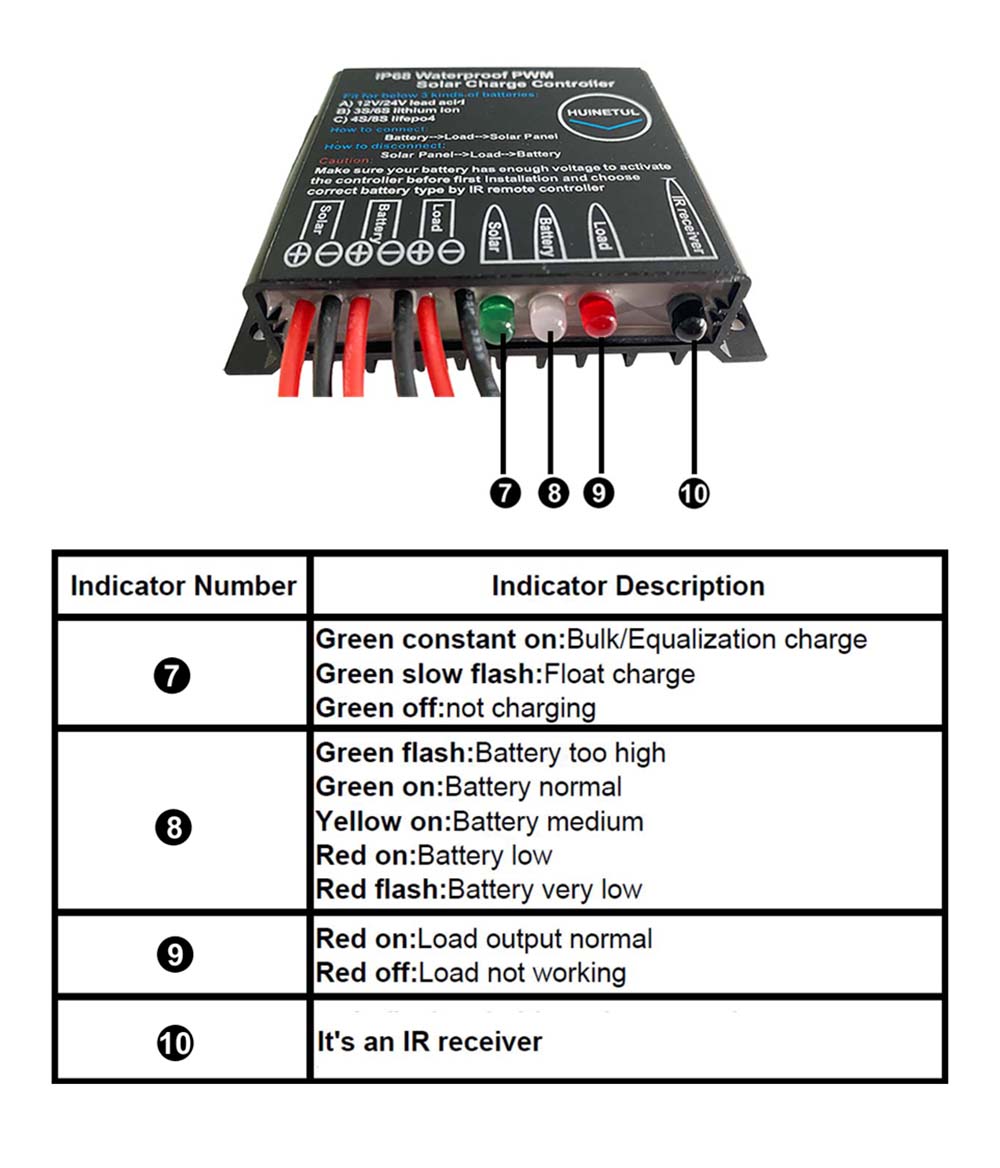

■ Safety Instructions:
A) Make sure your battery has enough voltage for the controller to recognize the battery type before first installation. Too low or dead voltage battery won’t activate the solar charge controller

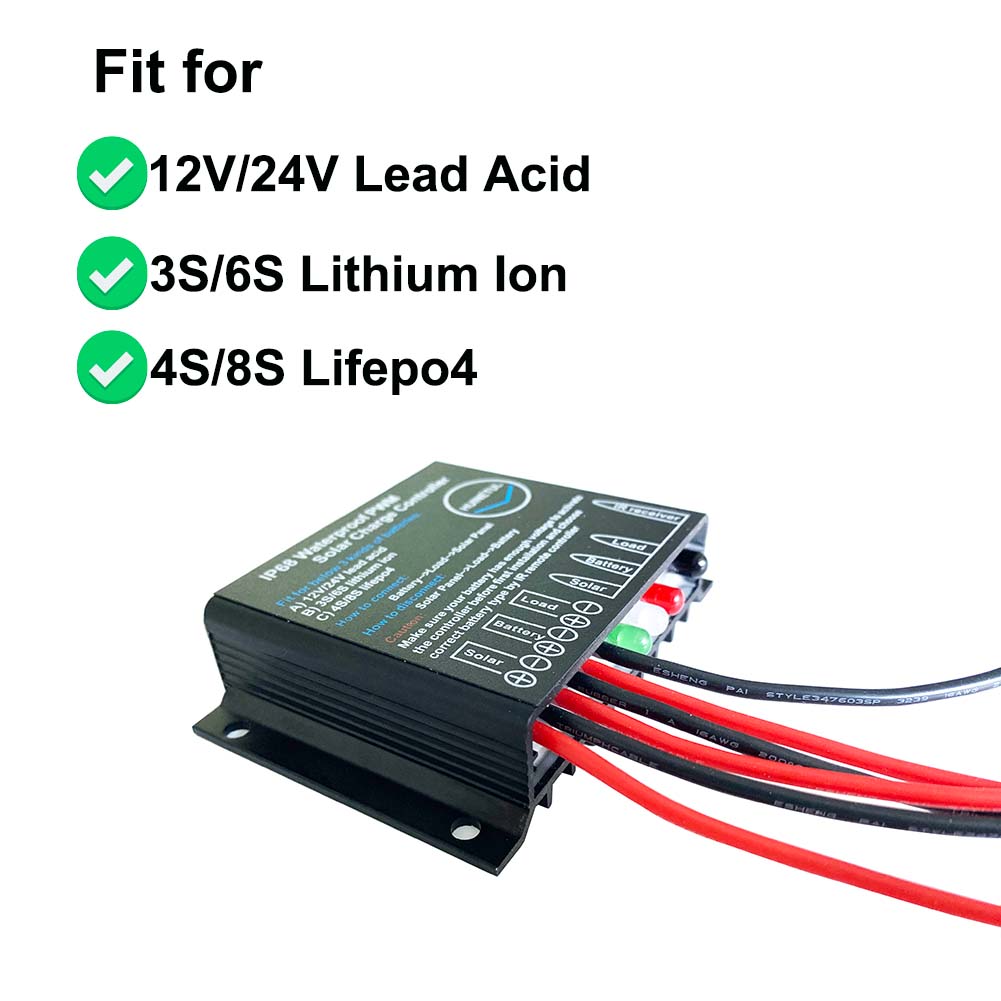

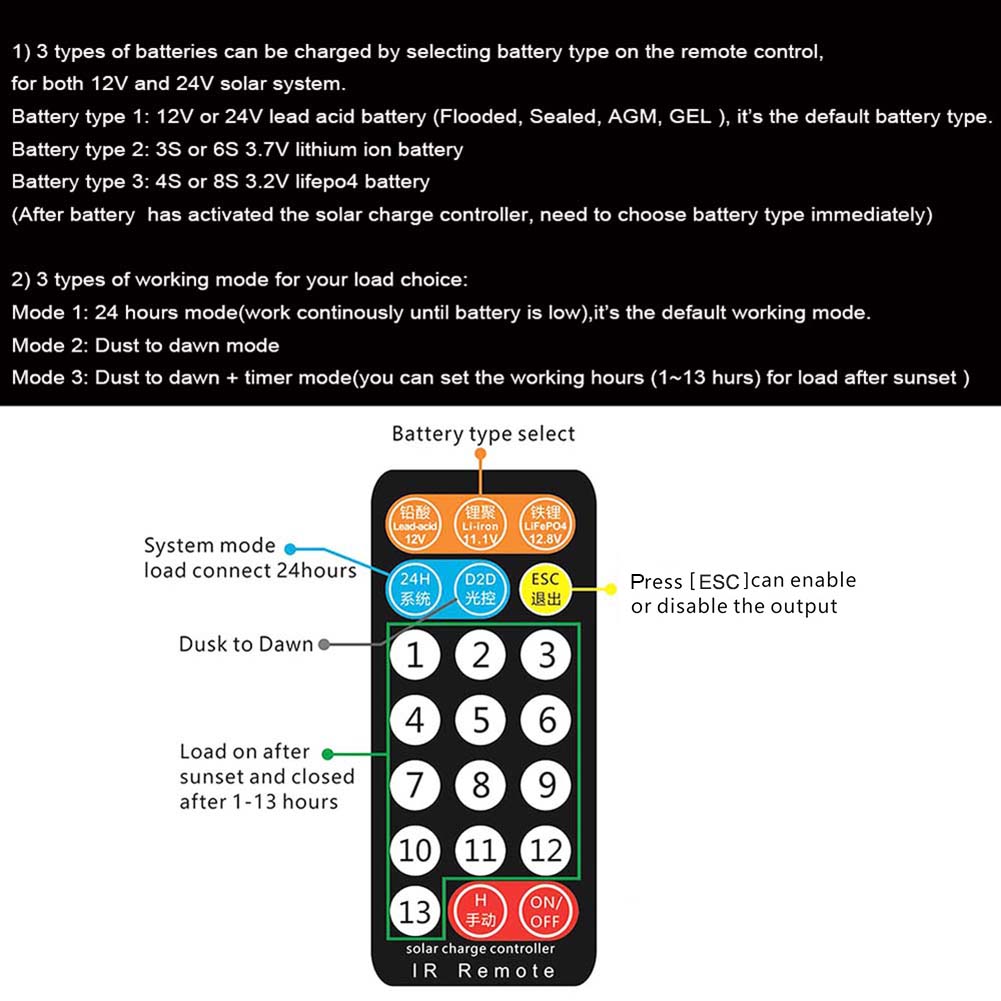

B) The solar charge controller can be charged for lead acid batteries (Sealed, Flooded, AGM, GEL),3S or 6S lithium ion and 4S or 8S lifepo4 batteries, but you need to confirm battery type as quick as possible after controller is activated.
Suggest to set battery type and working mode by standing as close as possible to the controller
C) The battery cable should be as short as possible to minimize loss
D) The solar charge controller is only suitable for regulating solar panels. Never connect another charging source to the charge controller
E) Please keep it in cool and well-ventilated place to maintain good heat dissipation
■ How to connect solar system with the controller:

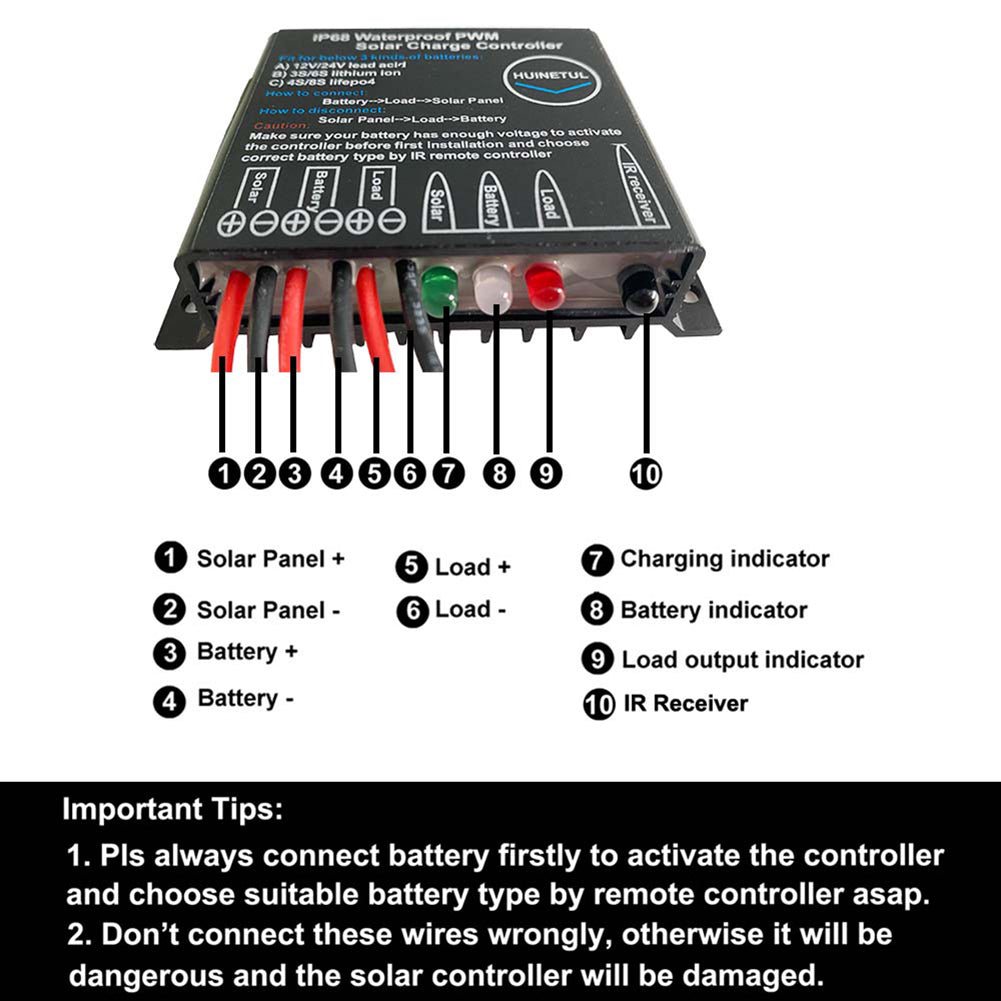

Step 1: Connect the battery to the solar charge controller firstly- plus and minus
Step 2: Connect the load to the controller secondly.
Step 3: Connect the solar panel to the controller finally - plus and minus.
NOTE: The reverse order applies when de-installing.
■ Specification:
Color: Black
Rated Charging/ Discharging Current:10A/20A
Max Solar Input Voltage: ＜50V
System Voltage: 11.1V/12V/12.8V/22.2V/24V/25.6V after setting by IR remote control (there is a thin plastic sheet in the remote control, pls pull it out when use)
Self consume: ＜10mA
Float Charging: 12.3V/13.8V/14V/24.6V/27.6V/28V
Discharge Reconnect Voltage: 10.5V/12V/12V/21V/24V/24V
Discharge Stop Voltage: 9.5V/10.7V/11.2V/19V/21.4V/22.4V
Operating Temperature:-20℃~+60℃
Material: Aluminum alloy
Maximum Wire Size:16AWG
Size/Weight: 82x58x21mm/135g
● Package Include:

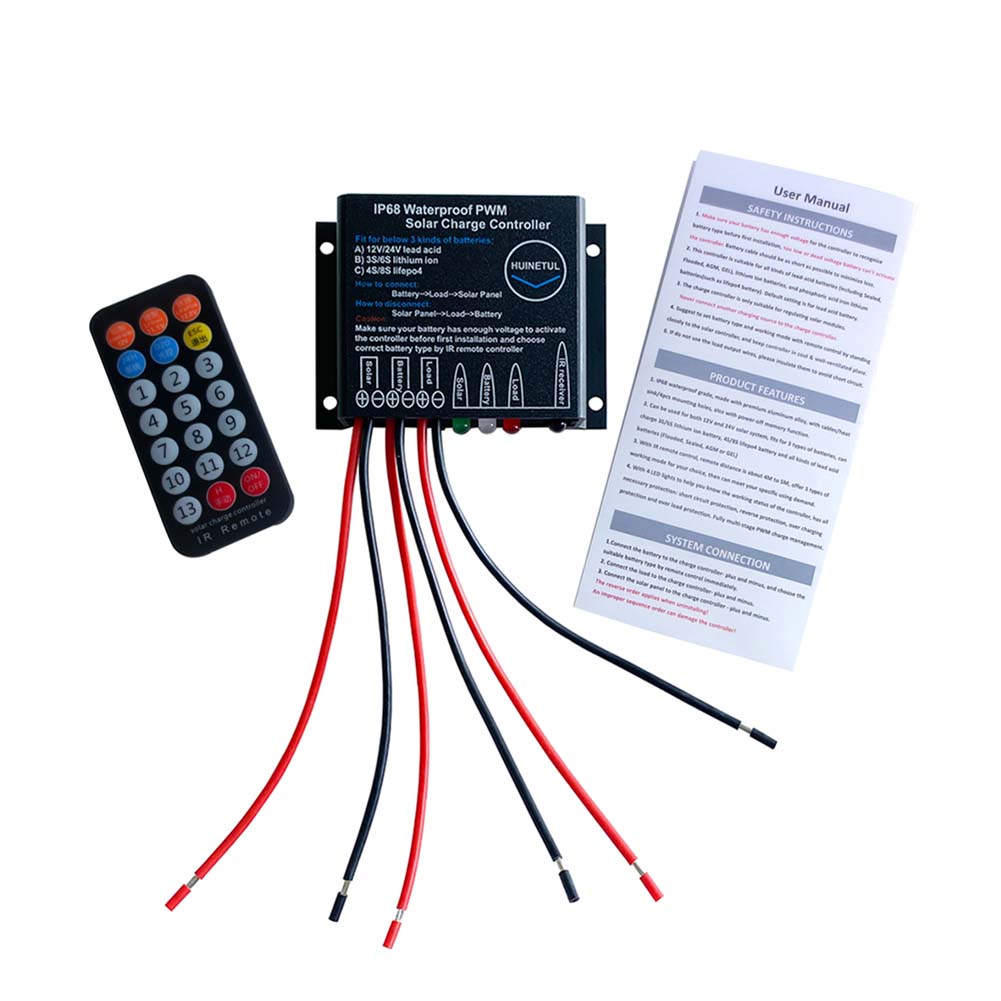

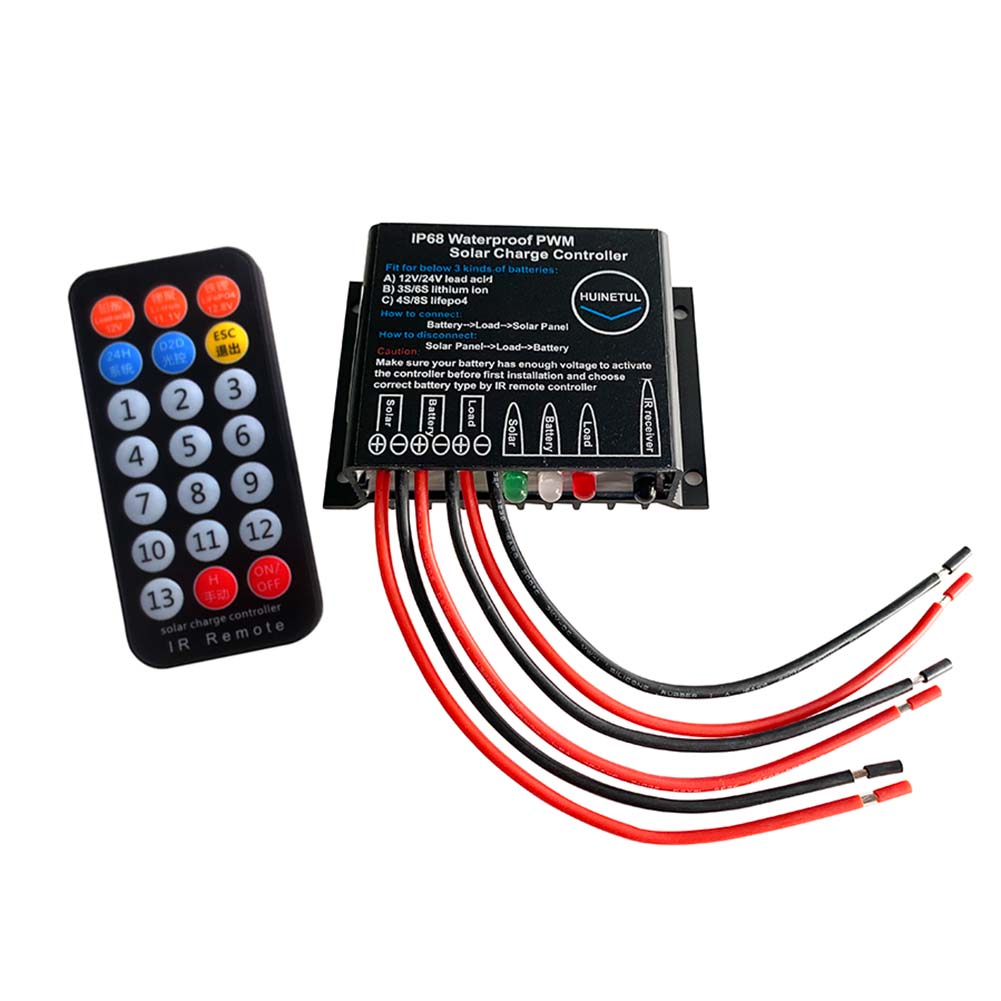

1x waterproof solar charge controller
1x Remote control
1x User Manual
OEM service is warmly welcome, with small MOQ.
We can custom make this PWM solar charge controller for you.(like with custom cable length/size, load discharging working mode, your own logo label sticker.)
Don't hesitate to contact us if you would like to custom your own solar controller.
