Safety Instructions:

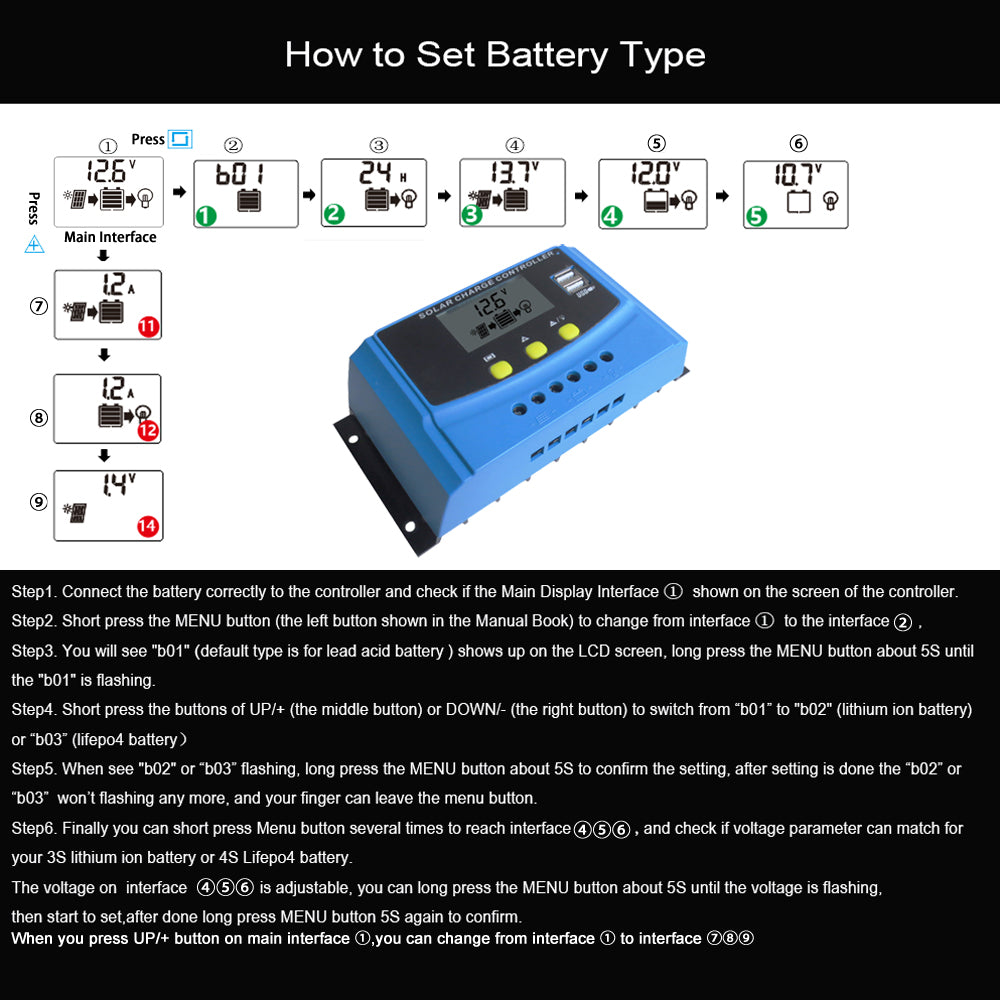

A) Make sure your battery has enough voltage for the controller to recognize the battery type before first installation or adjusting default parameter, too low voltage battery won’t activate the controller.
B) The solar charge controller can be charged for12V/24V lead acid batteries (Sealed, Flooded, AGM, GEL),3S or 6S lithium ion and 4S or 8S lifepo4 batteries, but you need to confirm battery type as quick as possible after controller is activated.
C) The charge controller is only suitable for regulating solar panels. Never connect another charging source to the charge regulator.
D) Disconnect all sources of power to the controller before installing or adjusting, and don’t disconnect battery during charging, because it may causes a brief pike in load voltage which may damage sensitive equipment.
E) The battery cable should be as short as possible to minimize loss. Use only well-isolated tools.
F) Please keep it in cool and well-ventilated place to maintain good heat dissipation

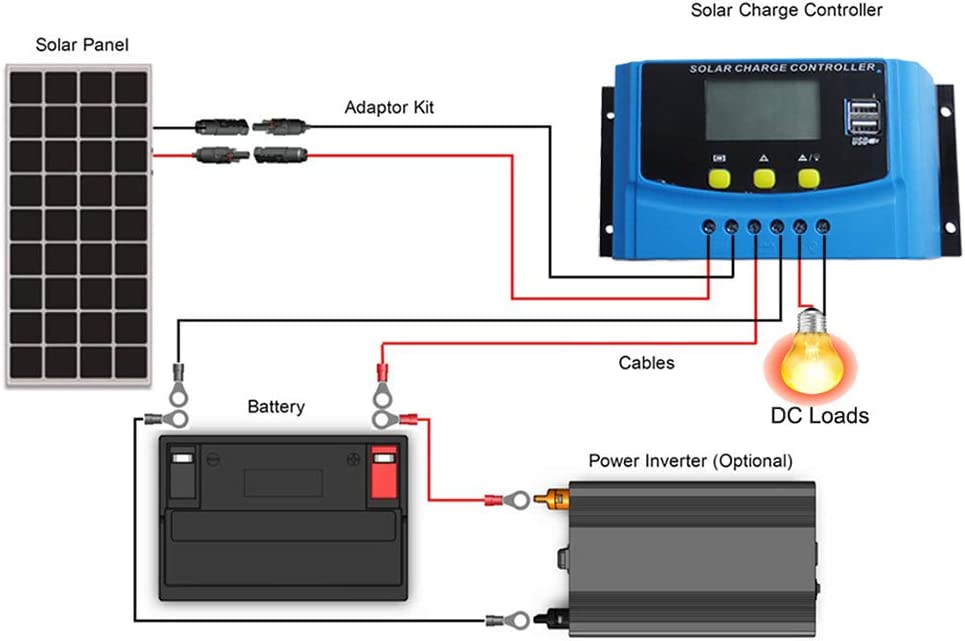

How to connect solar system with the controller:
Step 1: Connect the battery to the solar charge controller firstly- plus and minus.
Step 2: Connect the solar panel to the controller secondly.
Step 3: Connect the load to the controller finally - plus and minus.
The reverse order applies when de-installing.

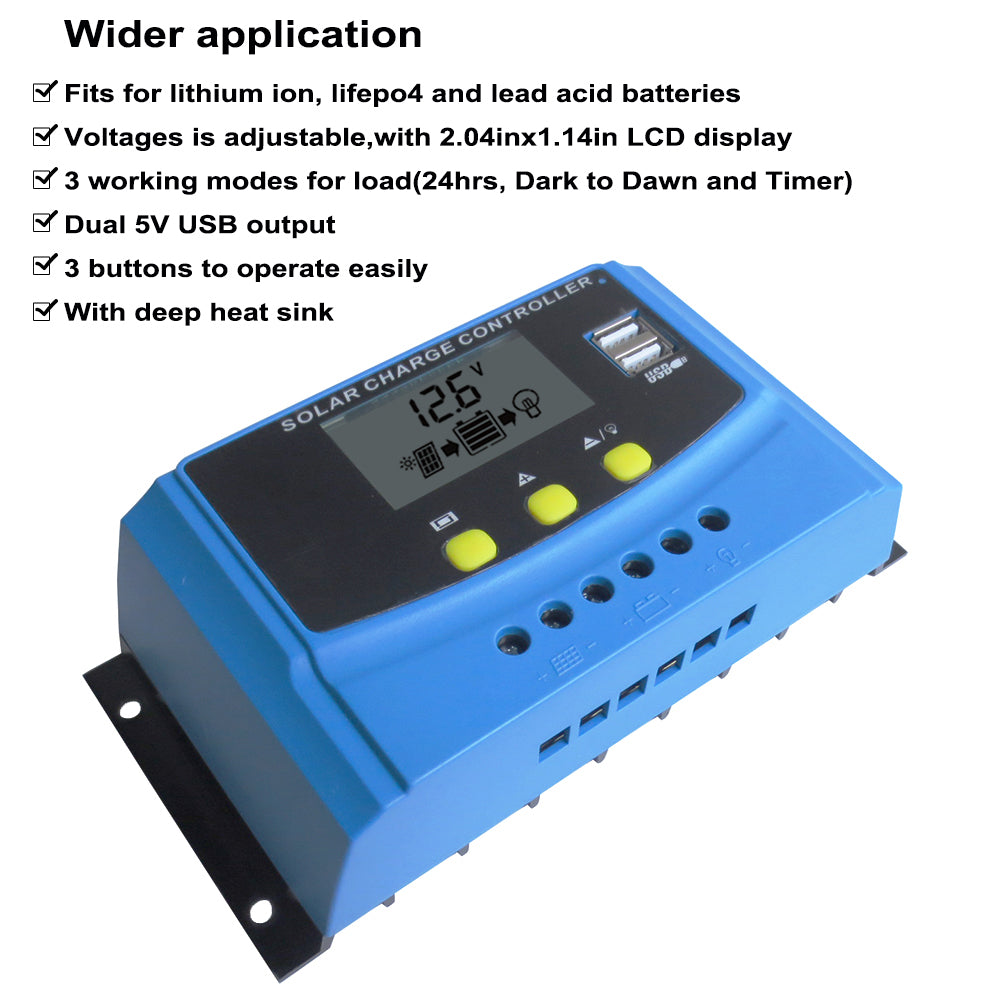

Specification:
Main Color: Blue
Rated Charging Current:30A/40A
Rated Discharging Current:30A/40A
Max Solar Input Voltage: ＜50V
System Voltage:11.1V/12V/12.8V/22.2V/24V/25.6V
Stand-by Lost: ＜15mA
Battery Type: 12V/24V Lead Acid, 3S/6S Lithium Ion,4S/8S LifePo4
Operating Temperature: -20 ~ +50℃
Storage Temperature: -30 ~ +70℃
Maximum Wire Size: 6AWG
Size/Weight: 186x90x50mm/370g
USB Output: 2pcs x 5V/2A (max)
Package Include：

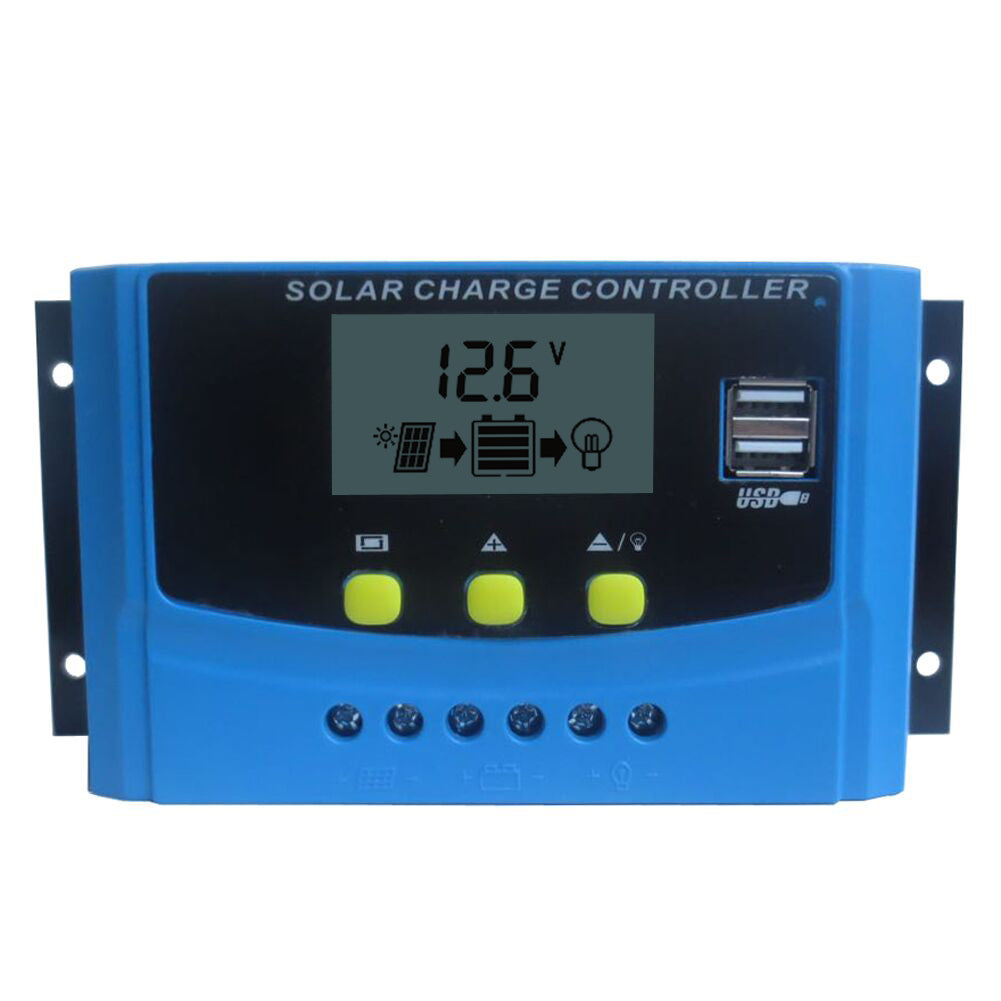

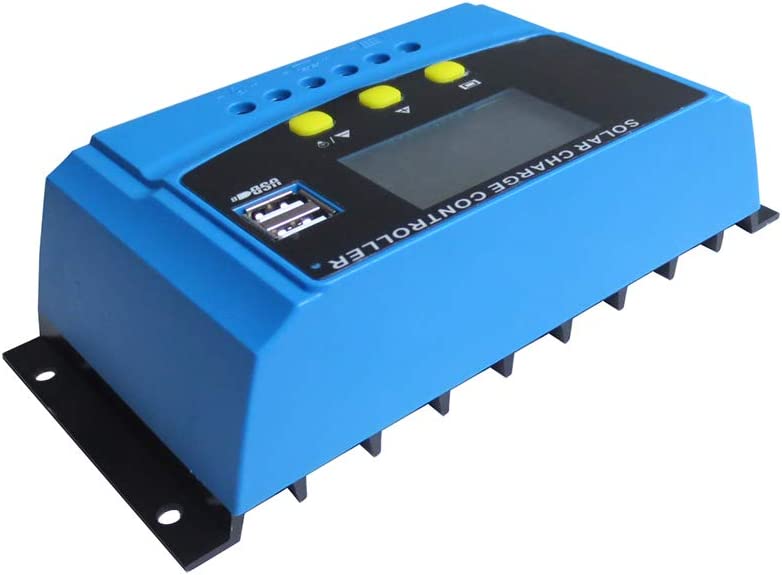

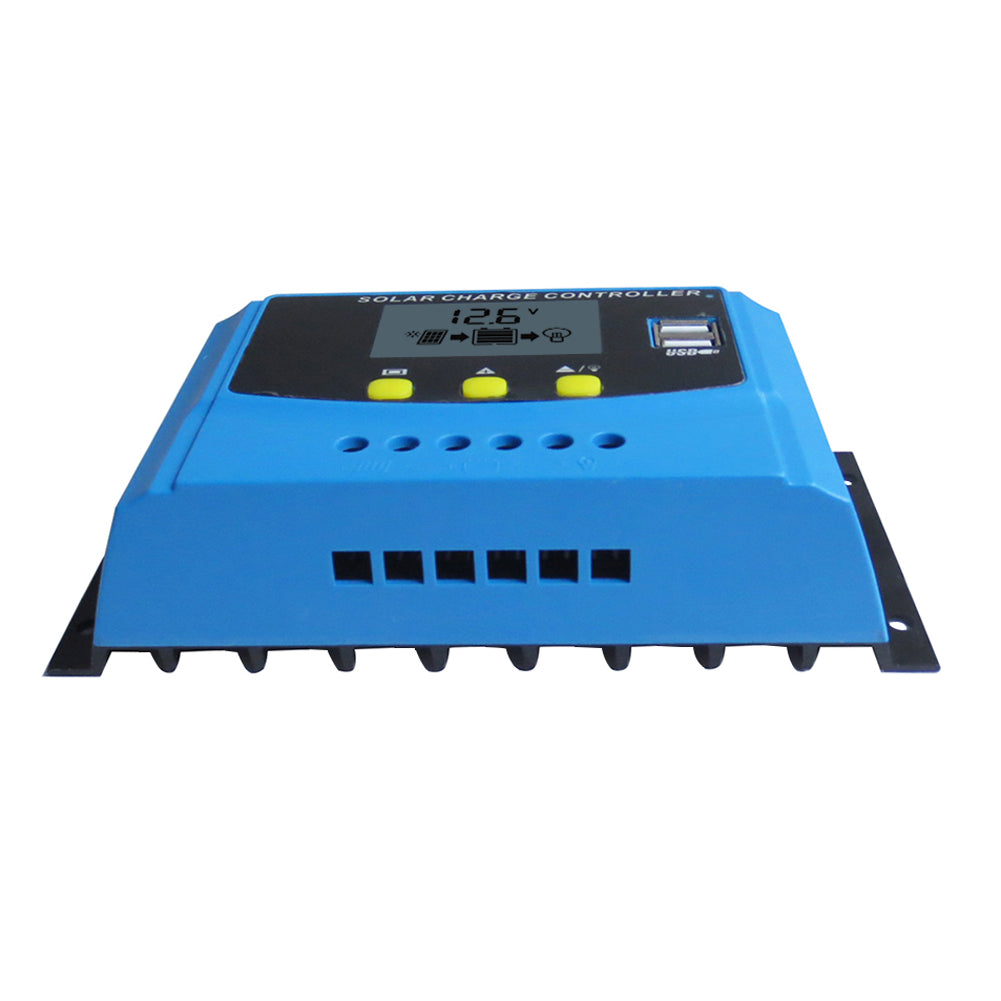

1 X Solar Charge Controller with LCD screen
1 X User Manual
