System Voltage: 12V DC or 24V DC
Charge Method: MPPT
System wiring Grounded: Negative Grounded

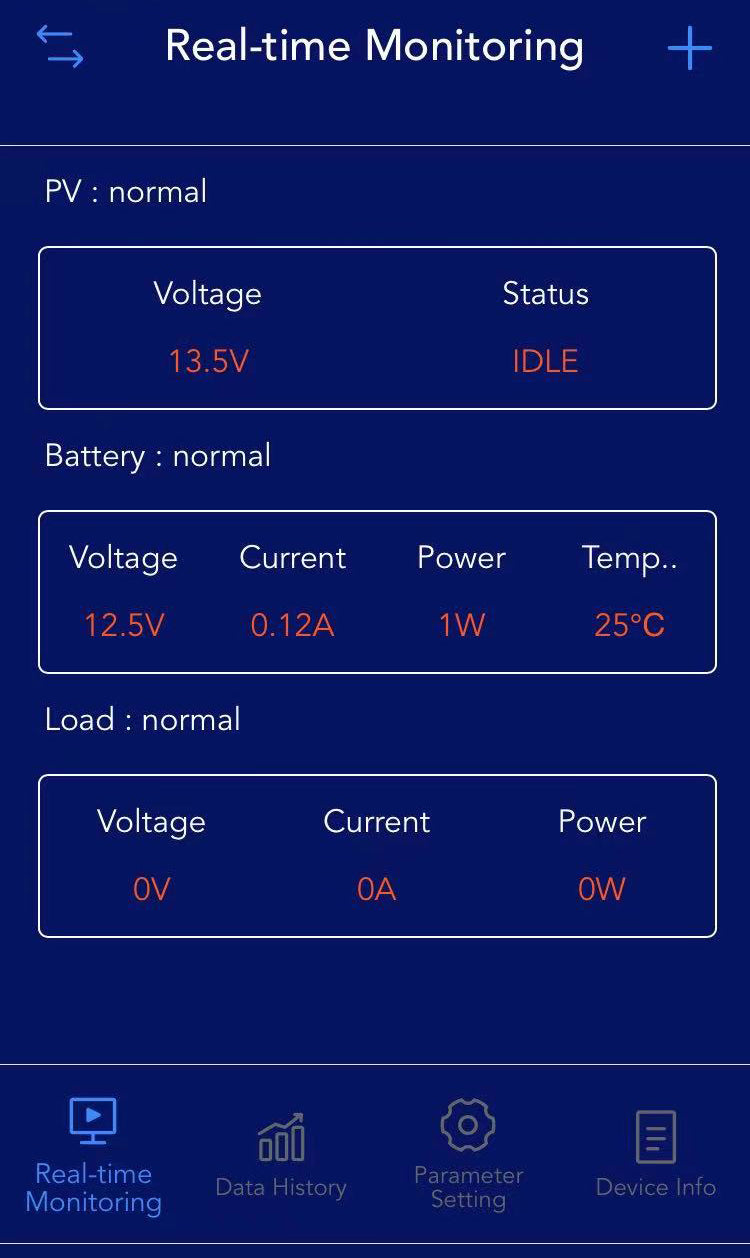

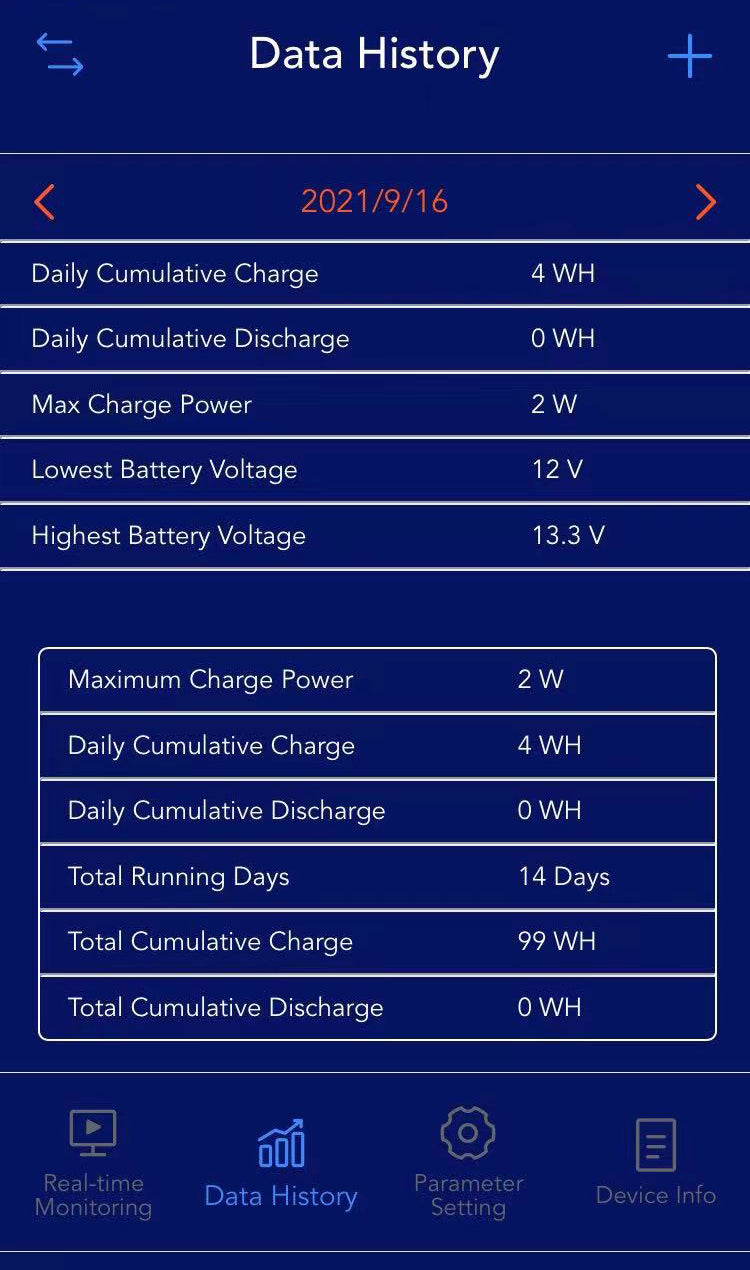

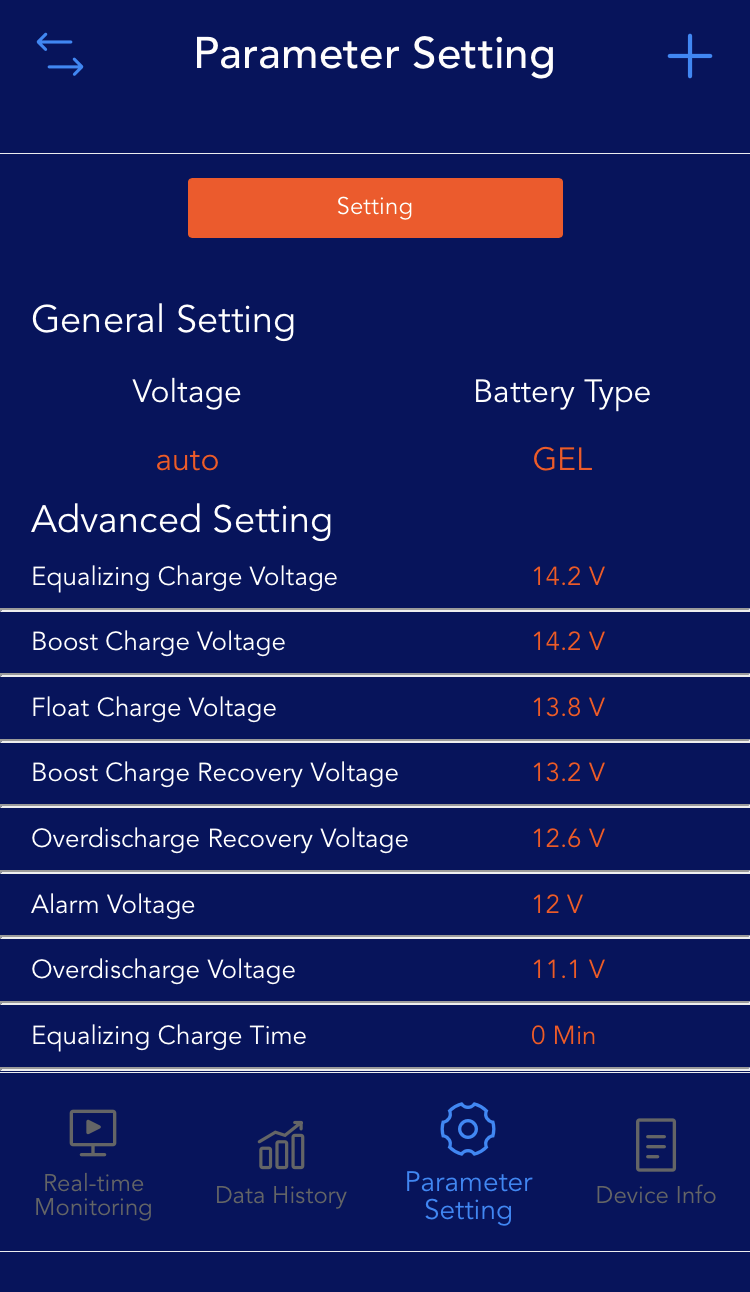

Designed with Built-in Bluetooth Module
Battery Compatibility: Deep Cycle Lead Acid, Flooded Lead Acid, Sealed Lead Acid(SLA), Gel, Lithium, Lithium Iron Phosphate (LiFePO4), 3S Lithium Nickel Cobalt
No Load Loss:12mA/12V; 10mA/24V
Max Solar Panel Input VOC: less than 100V DC
Rated Solar Charging Current:40A
Max Load Output Current: 20A
Max Solar Panel Input Power:600W/12V;1200W/24V
Operating Temperature :-35℃ to +45℃
Gross Weight:2kg/4.4lb
Dimensions:245x180x82.5mm
Package Included:

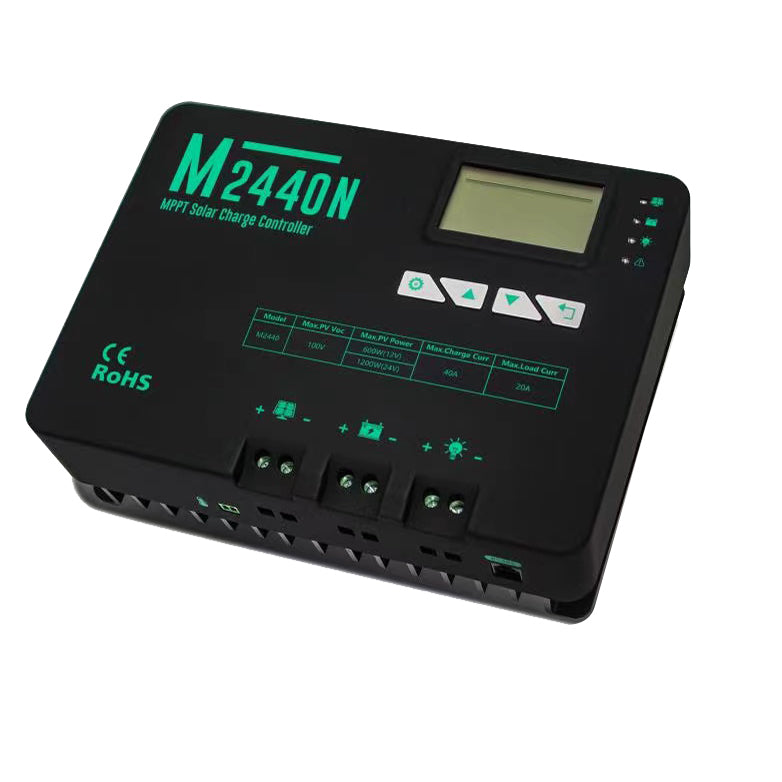

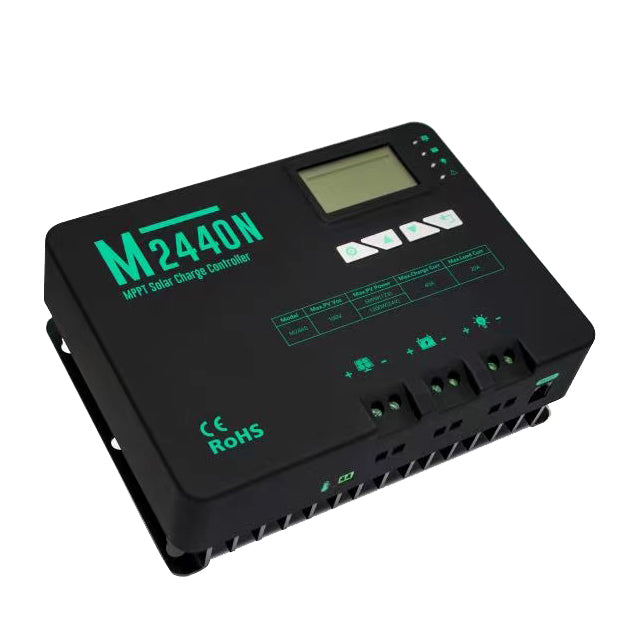

1 x 40A MPPT Solar Controller
1 x External Temperature Sensor
1 x User Manual
If you need to custom make your own logo, pls feel free to contact us.
