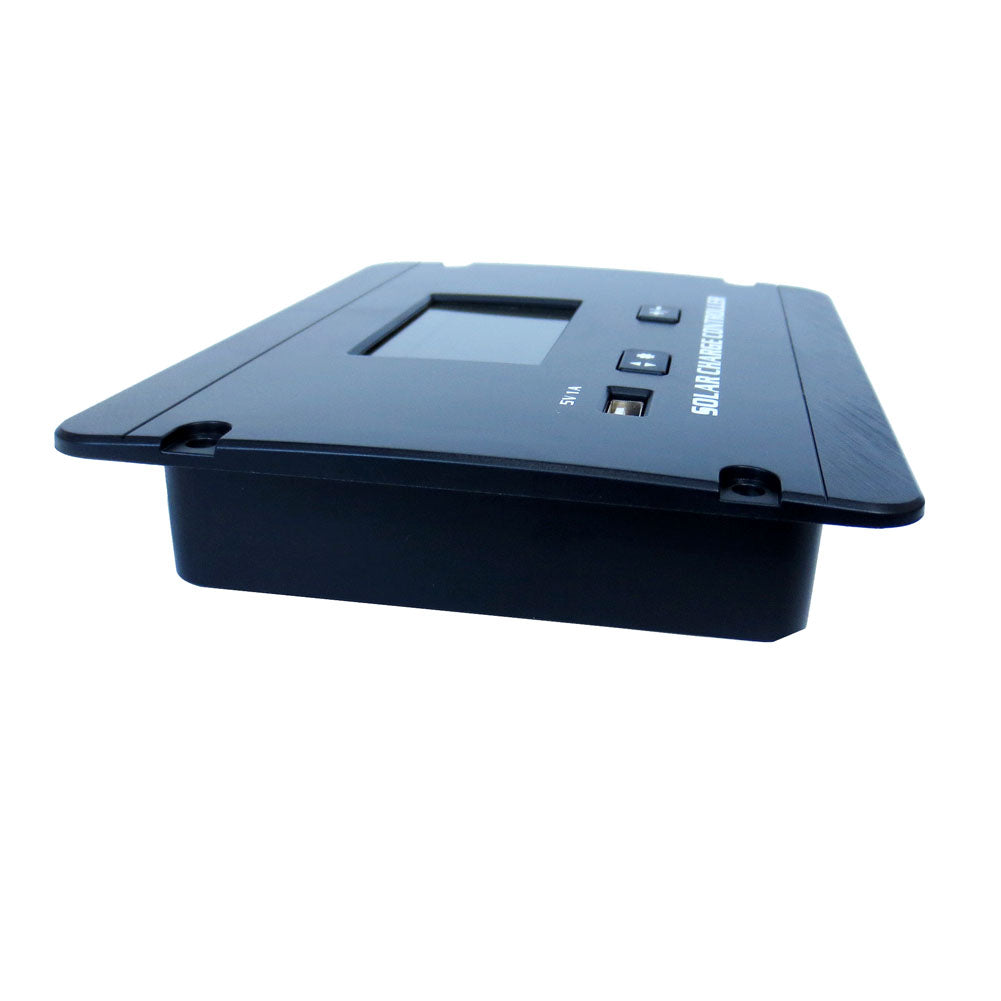

This flush mount type solar charge controller is mainly designed to be used for solar power system in RV, Van, Caravan or system cabinet installation, you also can use it in your own unique application.
It’s a negative grounded solar charge controller, suitable for solar system with PCB wiring negative grounded, with full range of electronic protections.

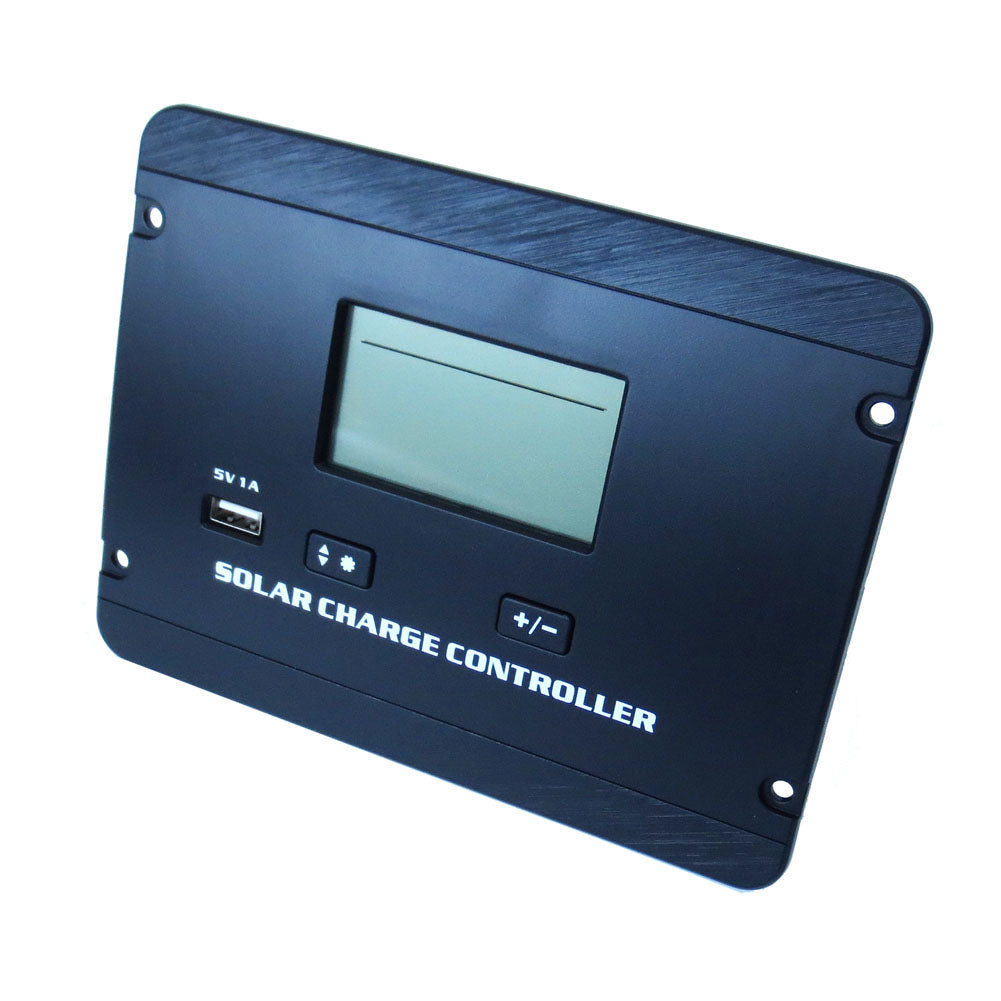

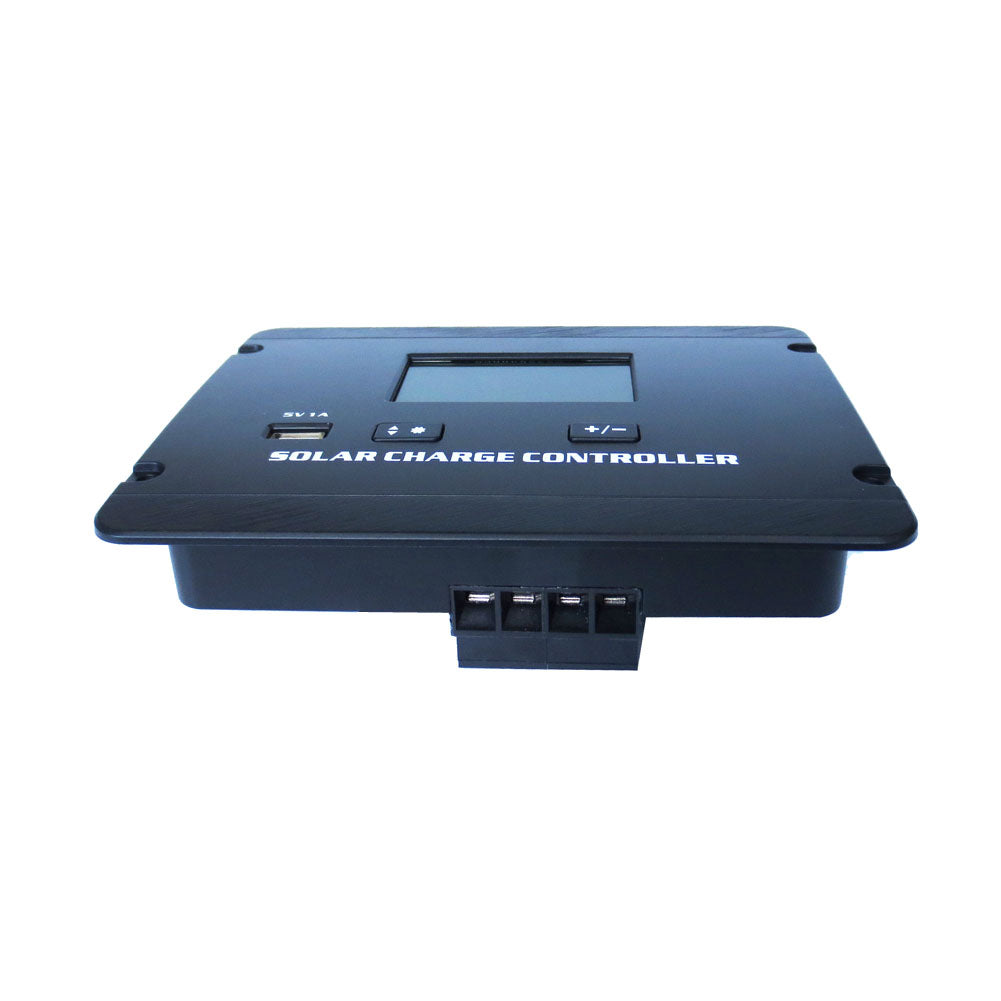

Designed with LCD display/Key operation/ 5V USB output.
Compatible for lead-acid GEL/SLA/Flooded & Lithium batteries(lithium or Lifepo4) batteries.
Only for battery charge regulation.
System Voltage: 12V DC or 24V DC(Auto for FLD/GEL/SLD, manual for Li)
Charge Method: PWM
System wiring Grounded: Negative Grounded
Battery Compatibility: Deep Cycle Lead Acid, Flooded Lead Acid, Sealed Lead Acid(SLA), Gel, Lithium, Lithium Iron Phosphate (LiFePO4), 3S Lithium Nickel Cobalt
No Load Loss:0.10W

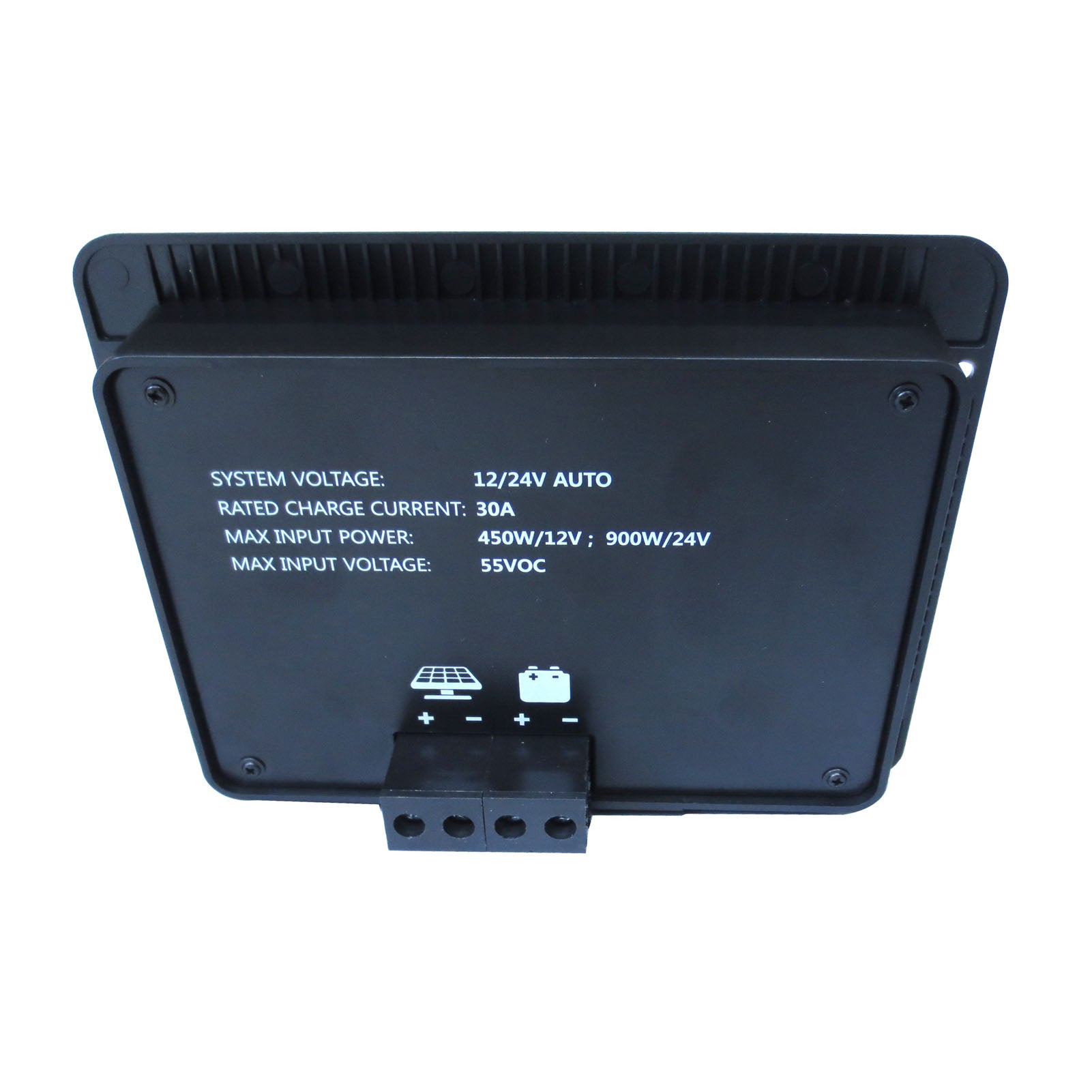

Max Solar Panel Input VOC:55V DC
Rated Solar Charging Current:30A
Max Solar Panel Input Power:450W/12V;900W/24V
USB Output:5V 1A
Operating Temperature :-35℃ to +45℃
Gross Weight:0.45 kg/1.0 lb
Dimensions:170x130x41.8mm
