System Voltage: 12V or 24V DC
Charge Method: MPPT
System wiring Grounded: Negative Grounded
Designed with Built-in Bluetooth Module
Battery Compatibility: Deep Cycle Lead Acid, Flooded Lead Acid, Sealed Lead Acid(SLA), Gel, Lithium
No Load Loss:12mA/12V; 10mA/24V
Max Solar Panel Input VOC: less than 100V DC
Rated Solar Charging Current:20A
Max Load Output Current: 20A
Max Solar Panel Input Power:300W/12V;600W/24V
Operating Temperature :-35℃ to +45℃
Gross Weight:1kg/2.2lb
Dimensions:180x140x71mm

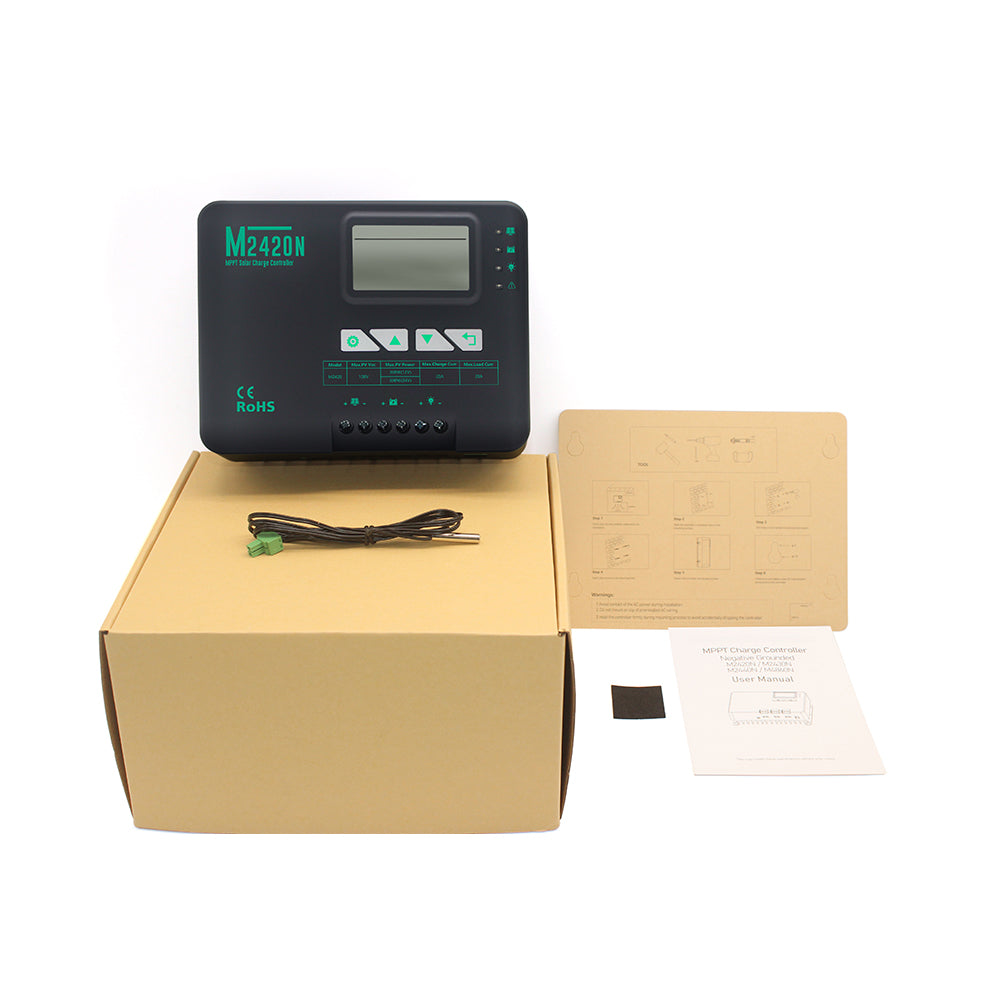

Package Included:

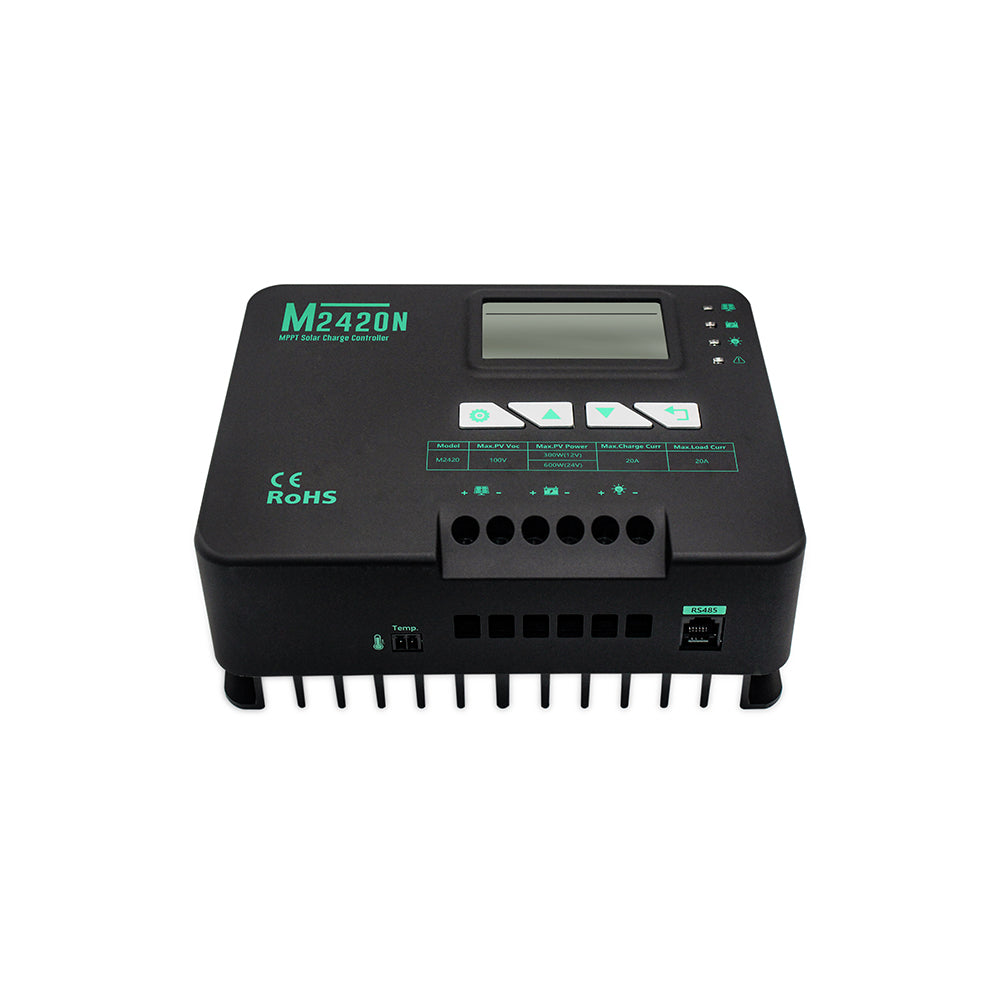

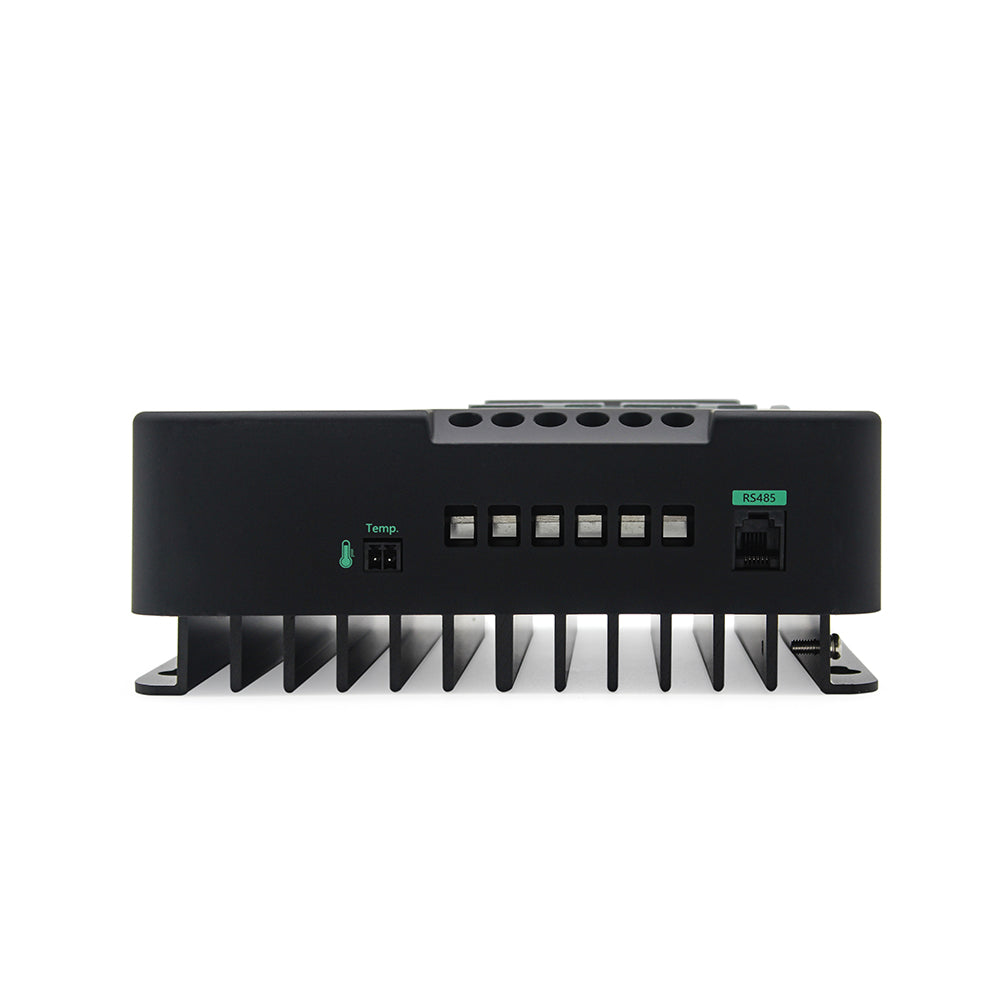

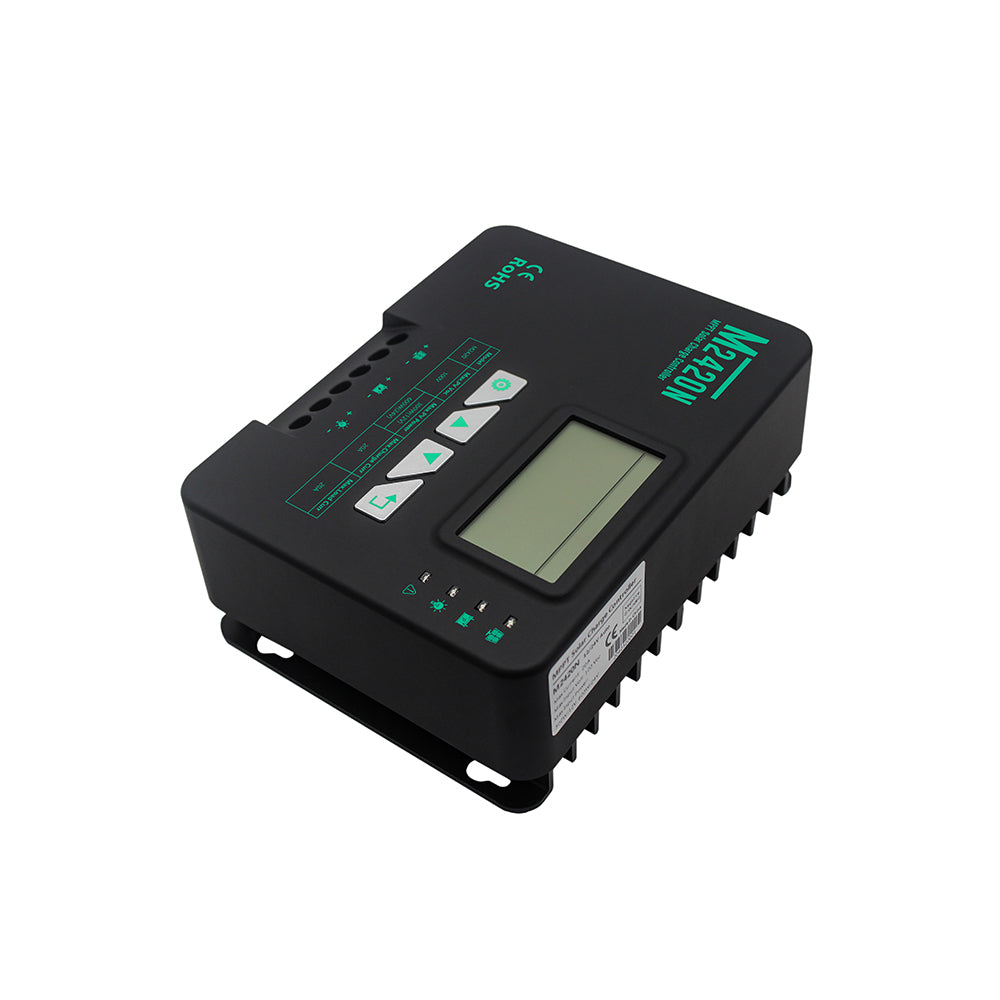

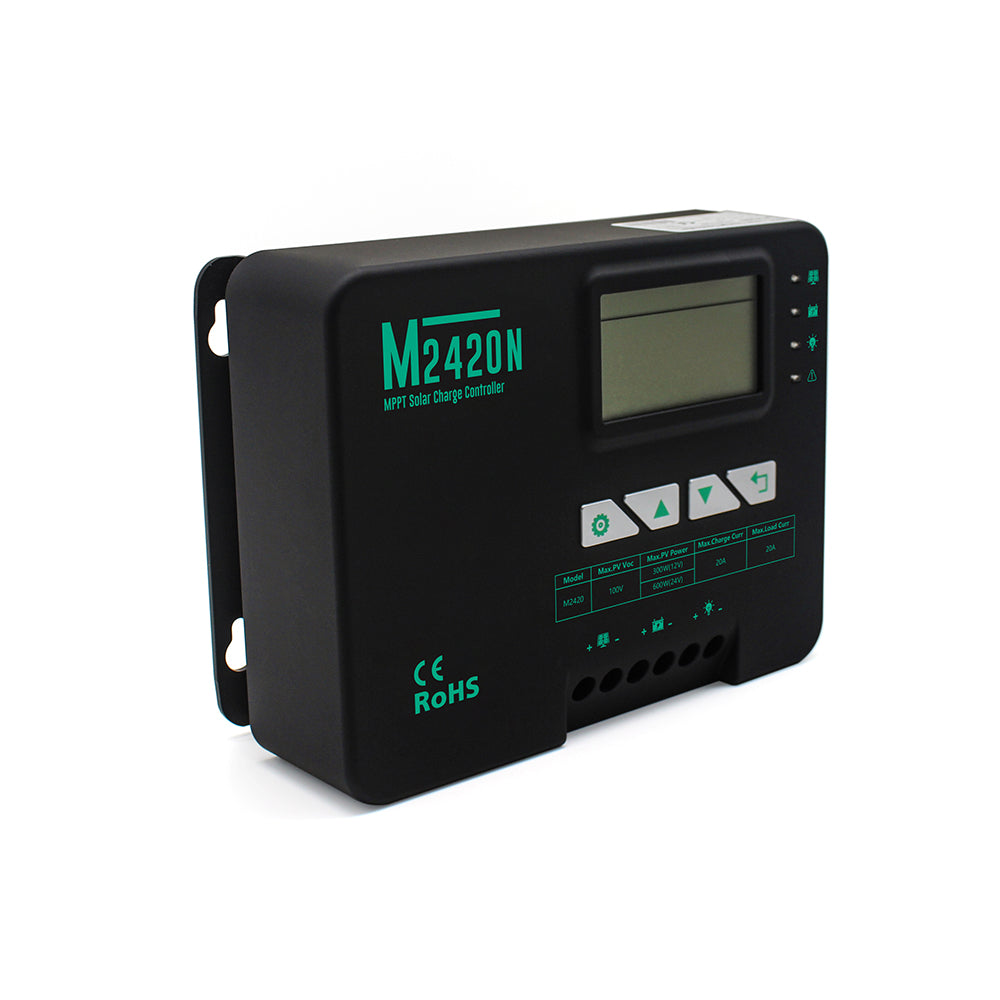

1 x 20A MPPT Solar Controller
1 x External Temperature Sensor
1 x User Manual
If you need to custom make your own logo, pls feel free to contact us.
