Product Features
* Supports 12/24V battery system, with 10A & 20A models available
* optimized structure design with PWM 3-phases charge control
* Supports lithium battery charge management

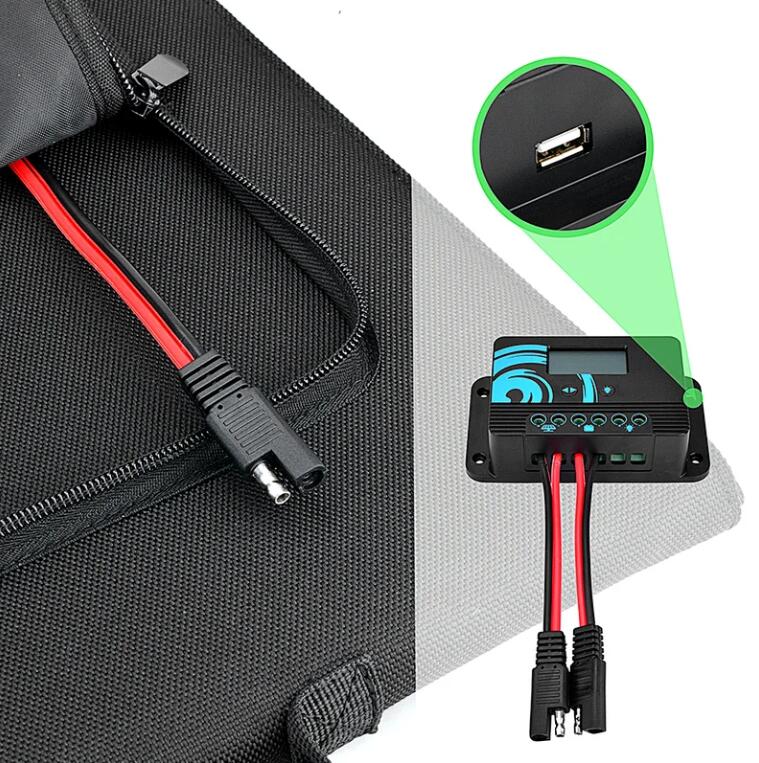

* Extra USB output of 5V 1A
Specification:
|
Max System Current |
10A |
20A |
|
Max PV Power |
170W/12V; 340W/24V |
340W/12V; 680W/24V |
|
Type |
PWM |
|
|
Battery System Voltage |
12V / 24V |
|
|
Work Time (h) |
24H |
|
|
Max PV Voltage |
55Voc |
|
|
No-load Loss |
8mA (12V); 12mA(24V) |
|
|
Operating Temperature |
-35℃ ~ +45℃ |
|
|
Protection level |
IP32 |
|
|
Net Weight |
0.17kg |
|
|
Light Control Voltage |
5V*n |
|
|
Light Control Delay Time |
10s |
|
|
Operating Altitude |
≤3000m |
|
|
Controller Dimension |
122*70*34.5mm |
|
Package Included:
1 x solar controller
1 x User Manual
