Where you can apply the solar charge controller for?
This portable mppt solar controller is desgined for 12V small solar system.
What kind of Battery You can Use it to charge
You can use the mppt solar charge controller for GEL, AGM and Lifepo4 Battery
Features
* 10A MPPT solar charge controller with portable design
* 3-stage charging optimizes battery performance
* Suitable for battery types such as GEL, AGM and LiFePO4
* LCD shows Battery Voltage and Charge Current, etc
* Indication of LED inducts Battery Soc, Charging Sta and Battery type
* User-friendly key press operation, more simple and easier
* Easy to be mounted * Overcharge, Over-temperature, Reverse Polarity Protection
Specification
Type :MPPT
Battery System Voltage :12V only
Work Time (h) :24H
Rated Solar Charge Current: 10A
Max PV Power :150W/12V
Max PV Voltage: 30Voc
No-load Loss: 20mA (12V)
Operating Temperature: -35℃ ~ +45℃
Protection level: IP45
Net Weight: 0.15kg
Dimension 96.4*61.6*27mm
How to connect solar system with the controller:
Step 1: Connect the battery to the solar charge controller firstly
Step 2: Connect the solar panel to the controller secondly.

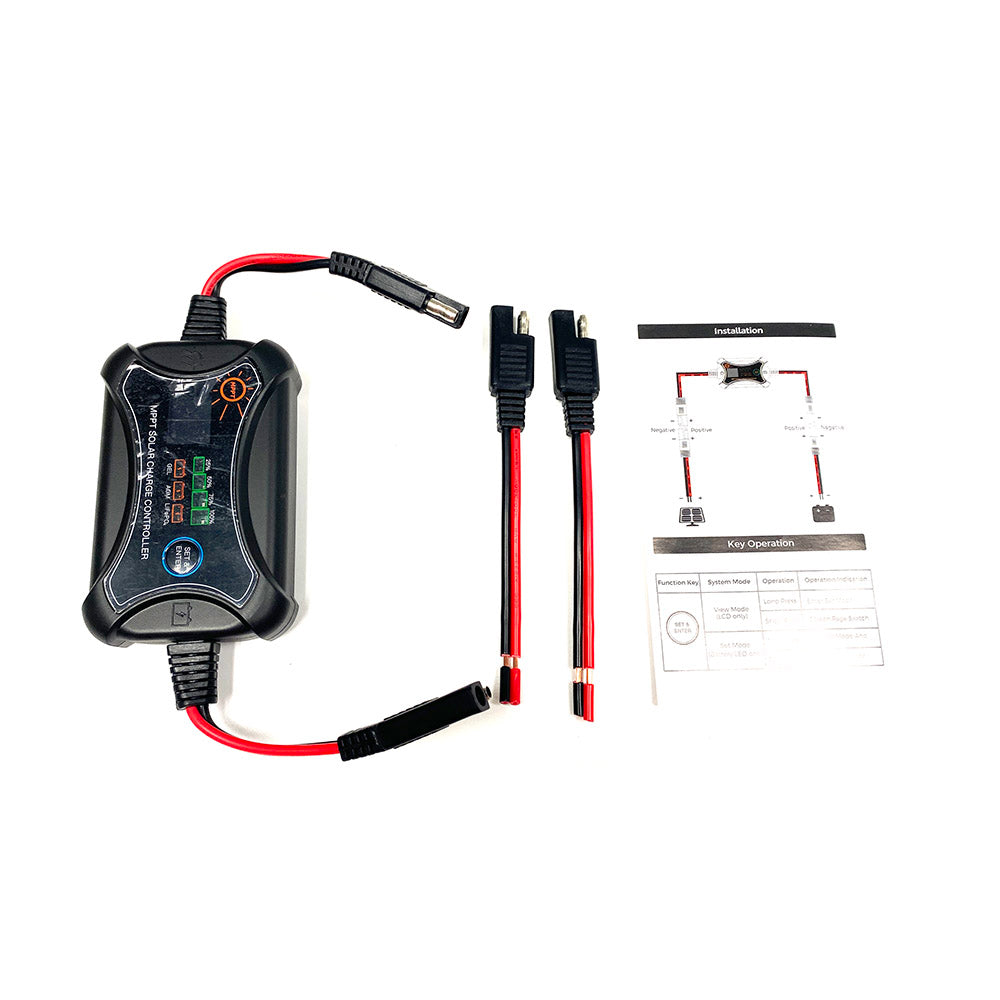

Package Included：
● 1 X Solar Charge Controller
● 2 X Cables
● 1 X User Manual
