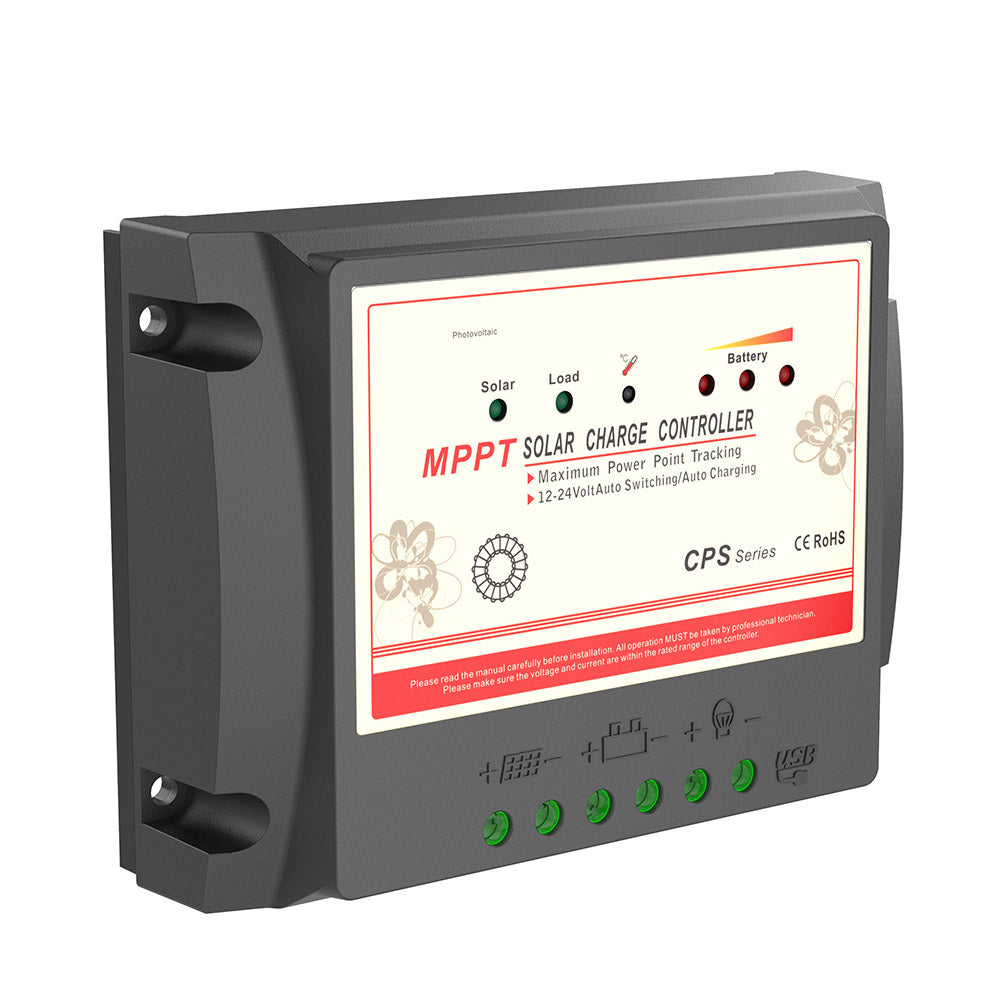

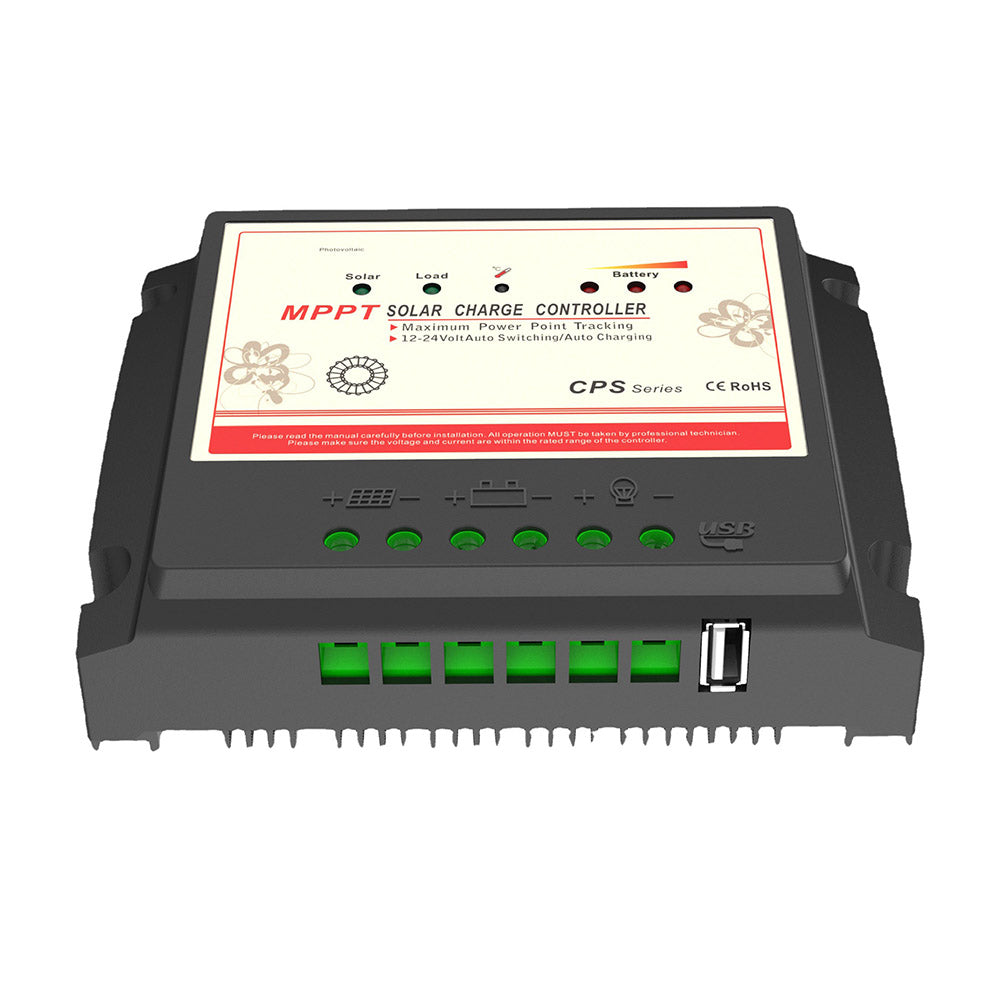

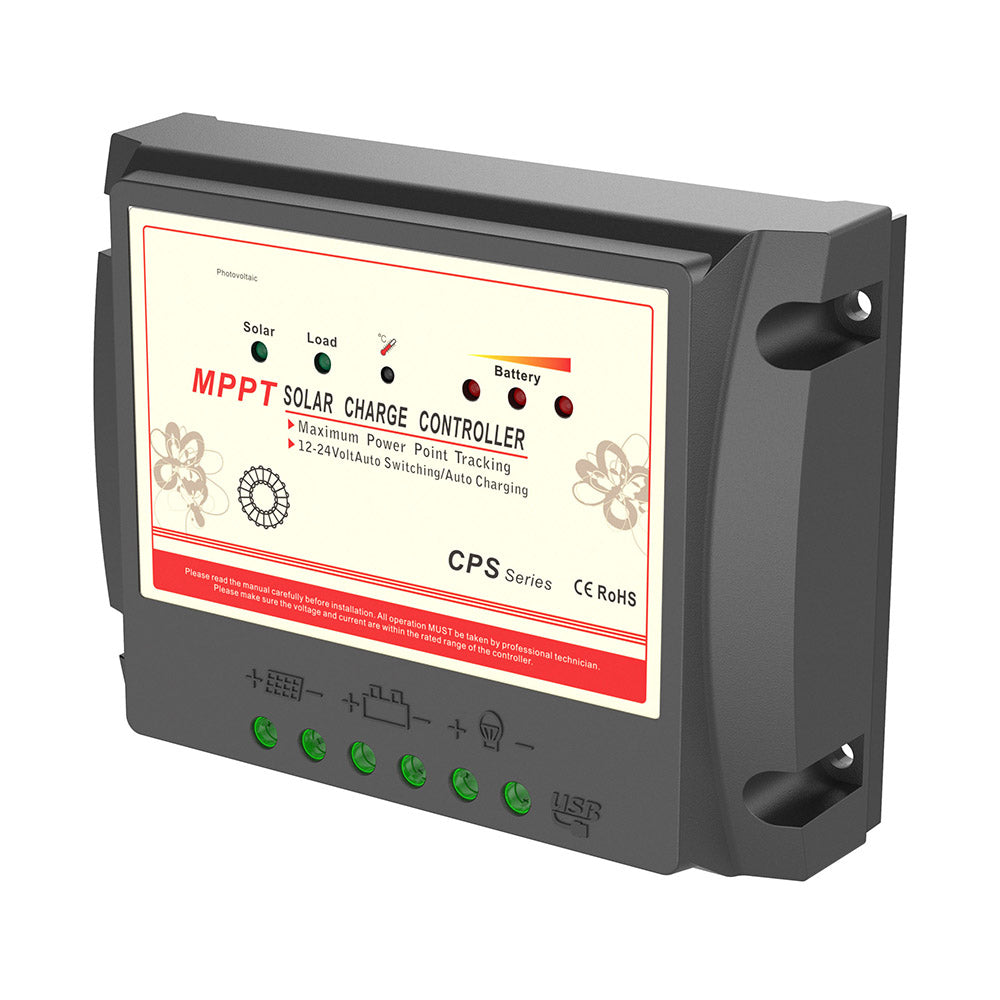

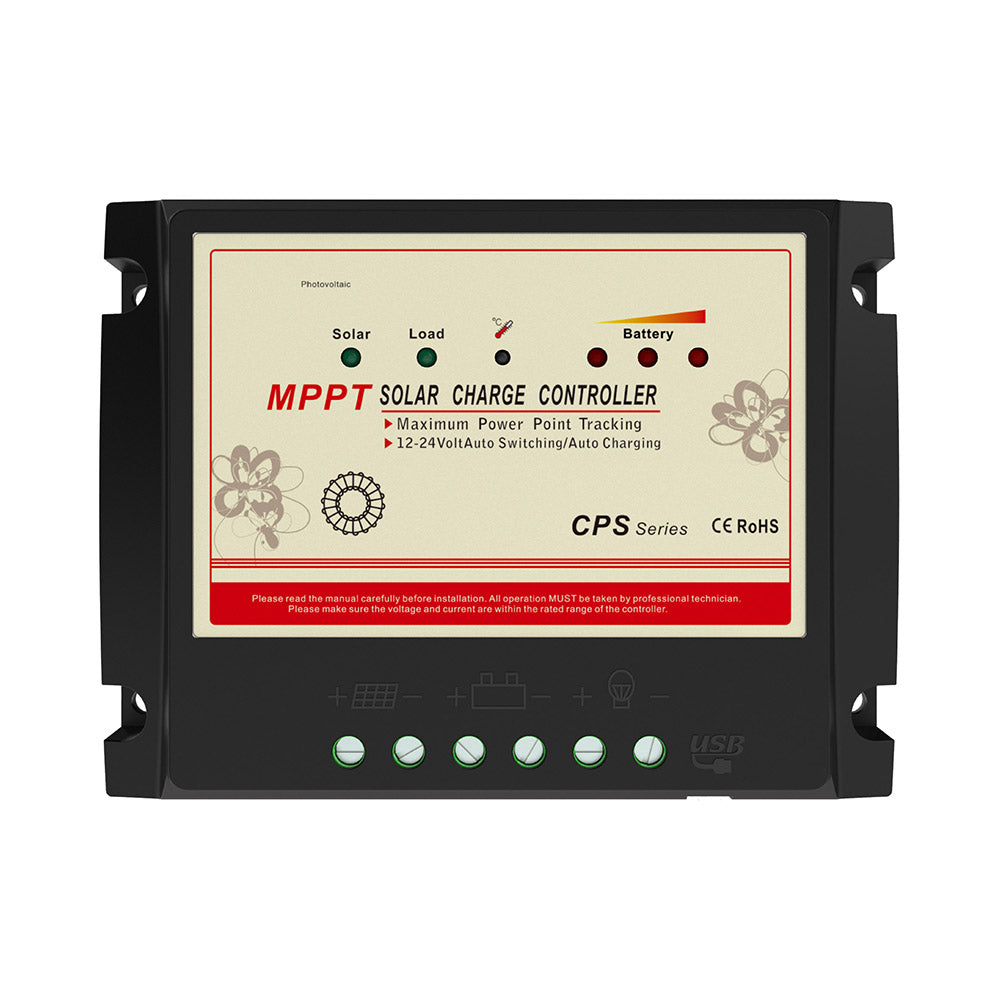

This mppt solar charge controller is designed for lead acid battery.
Specification
◆Rated charge current: 20A
◆Rated discharge current: 20A
◆Rated Voltage: 12V/24V Auto
◆MPPT Efficiency: Max 99%
◆No Load Current: <10mA
◆Overload, short circuit protection: >= 1.5 Rated Current
◆USB Output: 5V 1A
◆Over Voltage Protection: 16V; (for 24V X2）
◆Voltage of Stop Charging: 14.7V; X2/24V
◆Discharge Recovery Voltage: 12V; (for 24V X2）
◆Over discharge voltage: 10.8V; (for 24V X2）
◆Size:131 x 100 x34mm
◆Weight: 300g
Package Included：
● 1 X Solar Charge Controller
● 1 X User Manual
